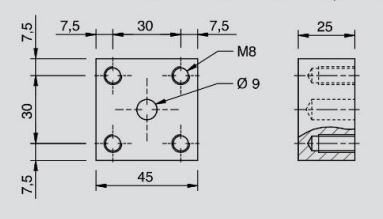

FLANGE FOR 3/8" & 1/2" VBCD SE FL / CC

Product SKU:

B8000

as low as

£11.10

£13.32 incl. VAT

Quantity:

In Stock

12 Month Warrantly

FLANGE FOR 3/8" & 1/2" SE

Product Features:

3/8" & 1/2" SE

Flange

FLANGE FOR 3/8" & 1/2" VBCD SE FL / CC

USE AND OPERATION

These valves are used to control actuator’s movement and block in one direction in order to enable the following functions: Under control descent of a load: load’s weight doesn’t carry it way as the valve prevent any cavitations of the actuator. Limited maximum pressure in case of shocks created by loads, over loads or sudden manoeuvring (load control with open centre distributor)

Body: Zinc-plated steel Internal parts: Hardened and ground steel, Seals: Buna N standard, Tightness: minor leakage
Standard settings: 320 bar
Valve setting must be at least 1,3 times more than load pressure in order to enable the valve to close even when undergone to the maximum load pressure

Applications: Connect v1 and v2 to the pressure flow, c1 to the free flow side of the actuator and c2 to the actuator’s side you want the low to be blocked. In-line mounting

ON REQUEST: OTHER SETTINGS AVAILABLE, PILOT RATION 1:8 (SPECIFY CODE/RP18), SEALING CAP (CODE / P) AND ARRANGED SEALING CAP (CODE/PP)

Flange ports enable direct mounting of the valve on the actuator.
