Hydraulic 3 Way Ball Valve with fixing holes, Metric Ports, RS 3 VIE, M12X1.5
RS3-6L
RS 3 VIE hydraulic 3 way ball valve with fixing hole,M12X1.5, max flow 25 L/min, max pressure 500 bar
Product Features:
Customers who bought this product also bought these
Hydraulic 3 Way Ball Valve with fixing holes, Metric Ports, RS 3 VIE, M12X1.5

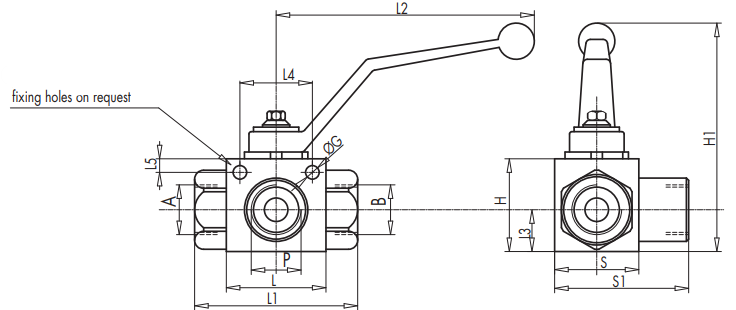

| CODE | TYPE | MAX FLOW LT/MIN |
PN BAR |
DN BAR |
A-B P |
L MM |
L1 MM |
L2 MM |
L3 MM |
L4 MM |
L5 MM |
L6 MM |
L7 MM |
ØG MM |
H MM |
H1 MM |
S MM |
S1 MM |
WEIGHT KG |
| RS3-6L | RS 3 VIE M12X1,5 | 25 | 400 | 6 | M12 X 1.5 | 42 | 76 | 110 | 14 | 25 | 5 | 10 | 6 | 5.5 | 35 | 92 | 30 | 51 | 0.5 |
| RS3-8L | RS 3 VIE M14X1,5 | 25 | 400 | 6 | M14 X 1.5 | 42 | 76 | 110 | 14 | 25 | 5 | 10 | 8 | 5.5 | 35 | 92 | 30 | 51 | 0.5 |
| RS3-10L | RS 3 VIE M16X1,5 | 25 | 400 | 6 | M16 X 1.5 | 44 | 76 | 110 | 14 | 25 | 5 | 11 | 10 | 5.5 | 35 | 92 | 30 | 53.5 | 0.5 |
| RS3-12L | RS 3 VIE M18X1,5 | 35 | 350 | 10 | M18 X 1.5 | 44 | 76 | 110 | 17 | 31 | 5 | 11 | 12 | 5.5 | 40 | 97 | 35 | 58.5 | 0.65 |
| RS3-15L | RS 3 VIE M22X1,5 | 60 | 350 | 13 | M22 X 1.5 | 48 | 79 | 110 | 18 | 34 | 6 | 12 | 15 | 6.5 | 43 | 100 | 37 | 62.5 | 0.75 |
| RS3-18L | RS 3 VIE M26X1,5 | 60 | 350 | 13 | M26 X 1.5 | 48 | 87 | 110 | 18 | 34 | 6 | 12 | 18 | 6.5 | 43 | 100 | 37 | 62.5 | 0.75 |
| RS3-22L | RS 3 VIE M30X2 | 100 | 350 | 20 | M30 X 2 | 62 | 110 | 180 | 23 | 46 | 6 | 14 | 22 | 8.5 | 55 | 110 | 45 | 79.5 | 1.4 |
| RS3-28L | RS 3 VIE M36X2 | 180 | 350 | 25 | M36 X 2 | 66 | 115 | 180 | 29 | 49 | 6 | 14 | 28 | 8.5 | 65 | 120 | 55 | 91.5 | 2.15 |
| RS3-35L | RS 3 VIE M45X2 | 180 | 350 | 25 | M45 X 2 | 66 | 119 | 180 | 29 | 49 | 6 | 16 | 35 | 8.5 | 65 | 120 | 55 | 93.5 | 2.35 |
| RS3-42L | RS 3 VIE M52X2 | 180 | 350 | 25 | M50 X 2 | 66 | 119 | 180 | 29 | 49 | 6 | 16 | 42 | 8.5 | 65 | 120 | 55 | 96.5 | 2.45 |
USE AND OPERATION:
These valves are used to divert the inlet flow towards 2 alternate ports (L scheme).
MATERIALS AND FEATURES:
Body: zinc-plated steel
Internal parts: ground and chromium-plated steel
Seals: BUNA N standard and POM seals
Ball type and seals: any leakage
APPLICATIONS:

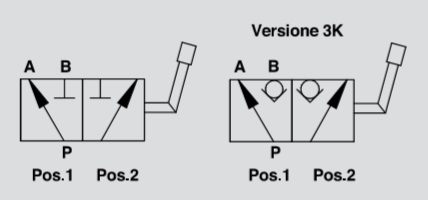

Connect P to the pressure flow, A and B to the circuit ports where the flow has to be diverted. With lever at 90° flow is connected in port A (position 1), with lever in line flow is connected in port B (position 2).
