Flowfit 1 Bank Monoblock Valve, 1/2 BSP, 45 L/Min Double Acting Cylinder Spool 3 Positions Without High Pressure Carry Over
35001

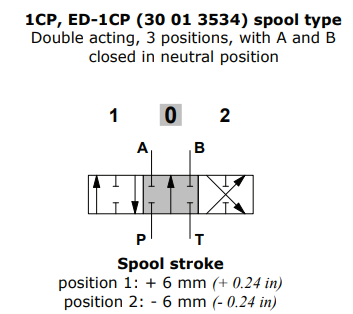

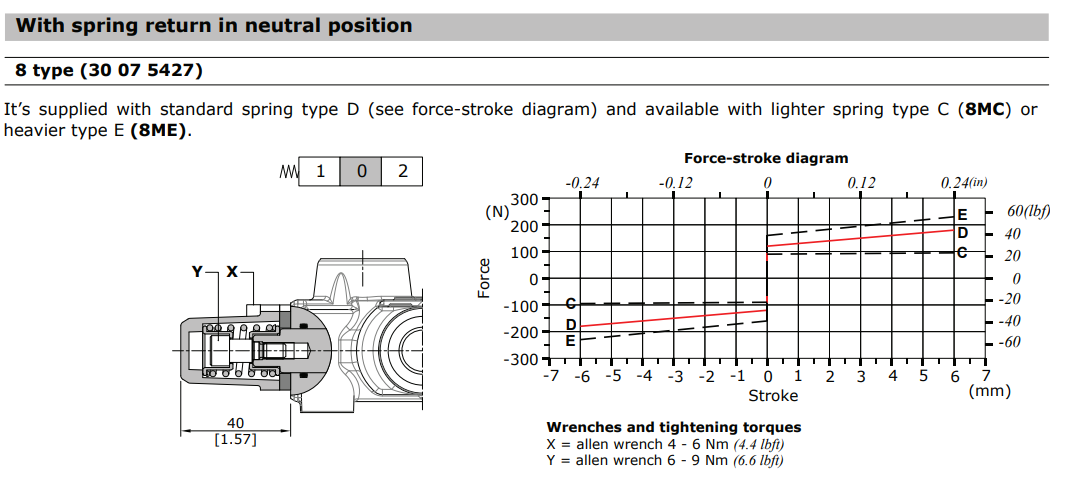

Flowfit 1 Bank Monoblock Valve, 1/2 BSP, 45 L/Min Double Acting Cylinder Spool 3 Positions, Spring Return, Without high pressure carry over plugs.

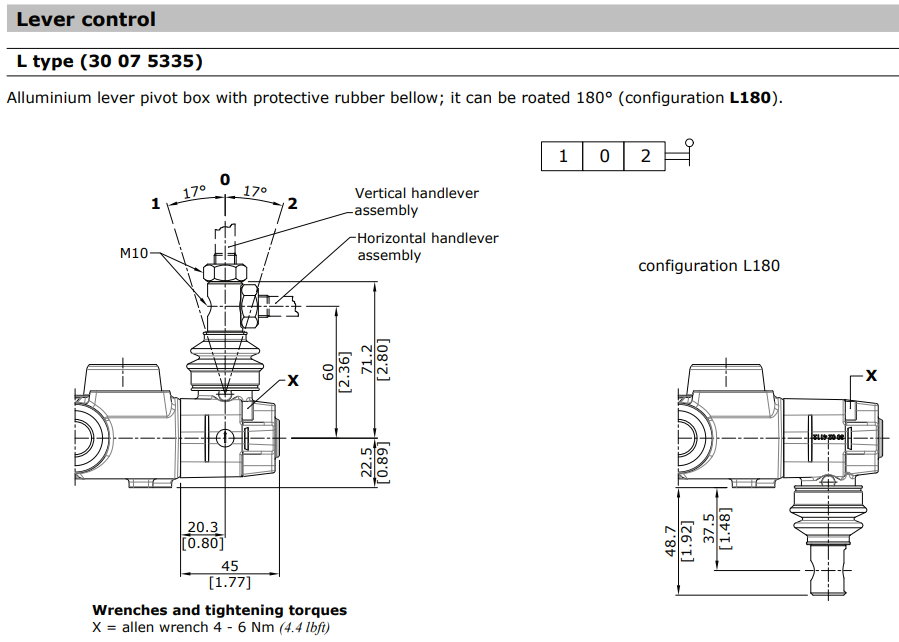

This valve is not supplied with levers, CLICK HERE for options.
Product Features:
Customers who bought this product also bought these
Flowfit 1 Bank Monoblock Valve, 1/2 BSP, 45 L/Min Double Acting Cylinder Spool 3 Positions Without High Pressure Carry Over

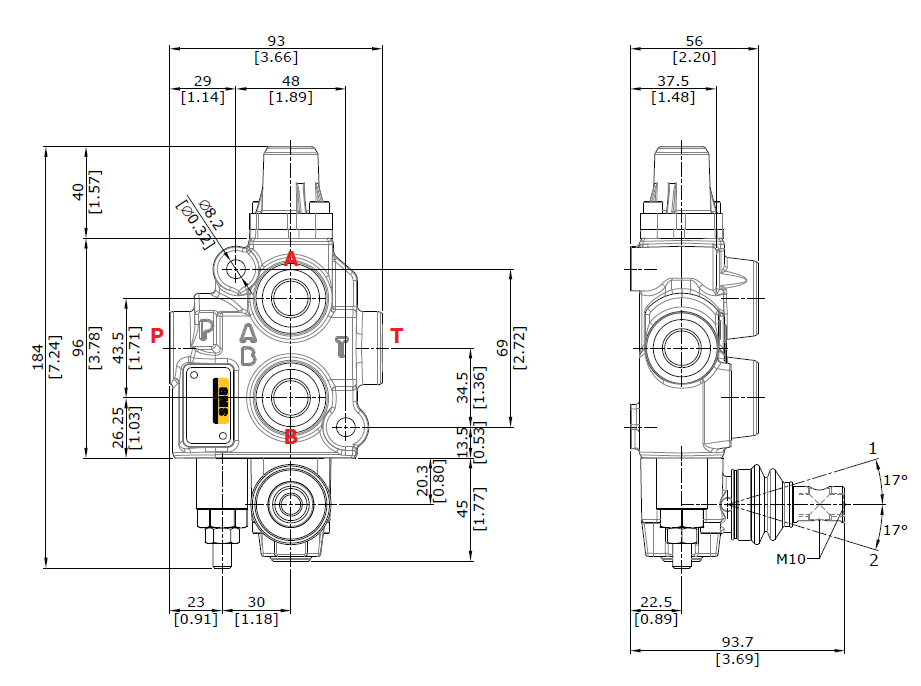

Diagram
Nominal flow rating: 45 l/min.
Max. flow: 65
l/min.
Operating pressure: (max.) 315 bar 4600 psi
Max. back pressure: on outlet port T 20 bar 290 psi
Internal leakage A(B) --> T: ▲p=100 bar – 1450psi with fluid and valve at 40°C 3cm3
/min. 0.18 in3
/min.
Hydraulic fluid: Mineral base oil
Fluid temperature: with NBR seals from - 20° to 80°C
with FPM (VITON) seals from - 20° to 100°C
Viscosity: operating range from 15 to 75 mm2
/s from 15 to 75 cSt
Min. 12 mm2
/s 12 cSt
Max. 400 mm2
/s 400 cSt
Max. level of contamination: 19/16 – ISO 4406
