2 Switch Hydraulic Valve Control Box, 12V DC, for Directional Monoblock & CETOP Valves
911223-KIT
Compact 2-switch 12V DC hydraulic control panel for directional, monoblock, and CETOP valve systems. Includes plugs and wiring for easy installation, with spring-return switches for precise control on agricultural, construction, and industrial machinery.
Product Features:
Customers who bought this product also bought these
2 Switch Hydraulic Valve Control Box, 12V DC, for Directional Monoblock & CETOP Valves
Multi-function 12V DC control panel providing reliable electrical control for hydraulic and electro-hydraulic systems requiring directional or on/off operation. Designed for durability and ease of use, the panel allows operators to control multiple functions from one compact unit.
The switches are spring-loaded and automatically return to the neutral position after activation, ensuring precise momentary control and improved operational safety. The panel is commonly used for controlling hydraulic directional valves and manifolds including systems using CETOP 3 and CETOP 5 standards.

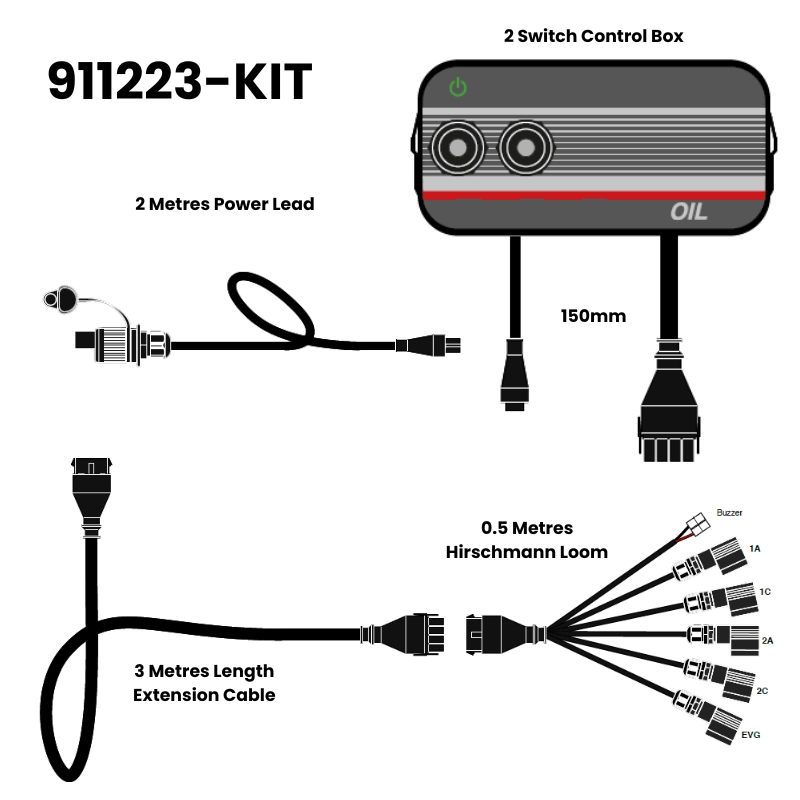

Kit Contents
| Item | Part Number |
|---|---|
| 2 Switch P50S Control Box | 911223 |
| Power cable with plug | 770197 |
| 3 metre extension cable | 919049-3,0 |
Optional Accessories
| Accessory | Part Number | Purpose |
|---|---|---|
| Socket | 405516 | For installing on the tractor to connect the control box plug |
| Buzzer | BL-400504 | For audible signalling |
Supplied with pre-installed wiring, connectors, and plugs, the panel can be quickly integrated into a wide range of machinery and equipment.
Switch
MOM / OFF / MOM (1-0-2) – Automatic Centre Return
All up-down switches feature a spring return to neutral configuration with no latching. When released, the switch automatically returns to the centre OFF position, allowing precise momentary control of directional functions such as up/down or left/right movement.
Panel Features
- Multiple control functions available depending on configuration
- Spring-loaded switches automatically return to neutral
- Suitable for controlling directional or multi-section valves
- Compatible with CETOP 3 and CETOP 5 manifolds
- Includes all plugs and connectors
Cable & Wiring
| Power cable | 2 metres with plug |
| Panel to valve cable | 3 metres with plugs |
| Extension cable sets | 5m, 7m, 9m available (3m standard) |
| Connectors | All connectors and plugs included |
Additional Signal Output
When any switch is activated, the signal is also applied simultaneously to an additional pair of wires, allowing integration of auxiliary functions such as:
- Warning signals (horn, buzzer, etc.)
- Switching a pump via relay
- Activating additional alerts or indicators
Applications
Designed for versatile hydraulic and electro-hydraulic control, ideal for:
Agricultural spraying, hedge cutting, forestry grabs, lifting equipment, stabiliser functions, winches, conveyors, compactors, trailers, spreaders, and auxiliary valve control systems.
| Suitable Machinery |
|---|
| Excavators Bulldozers and dozers Loaders and skid steers Articulated dump trucks Pipelayers Drilling rigs Graders Telehandlers Crawler machines Tractors Harvesters and agricultural machinery Backhoe loaders Forklifts Forestry equipment |
