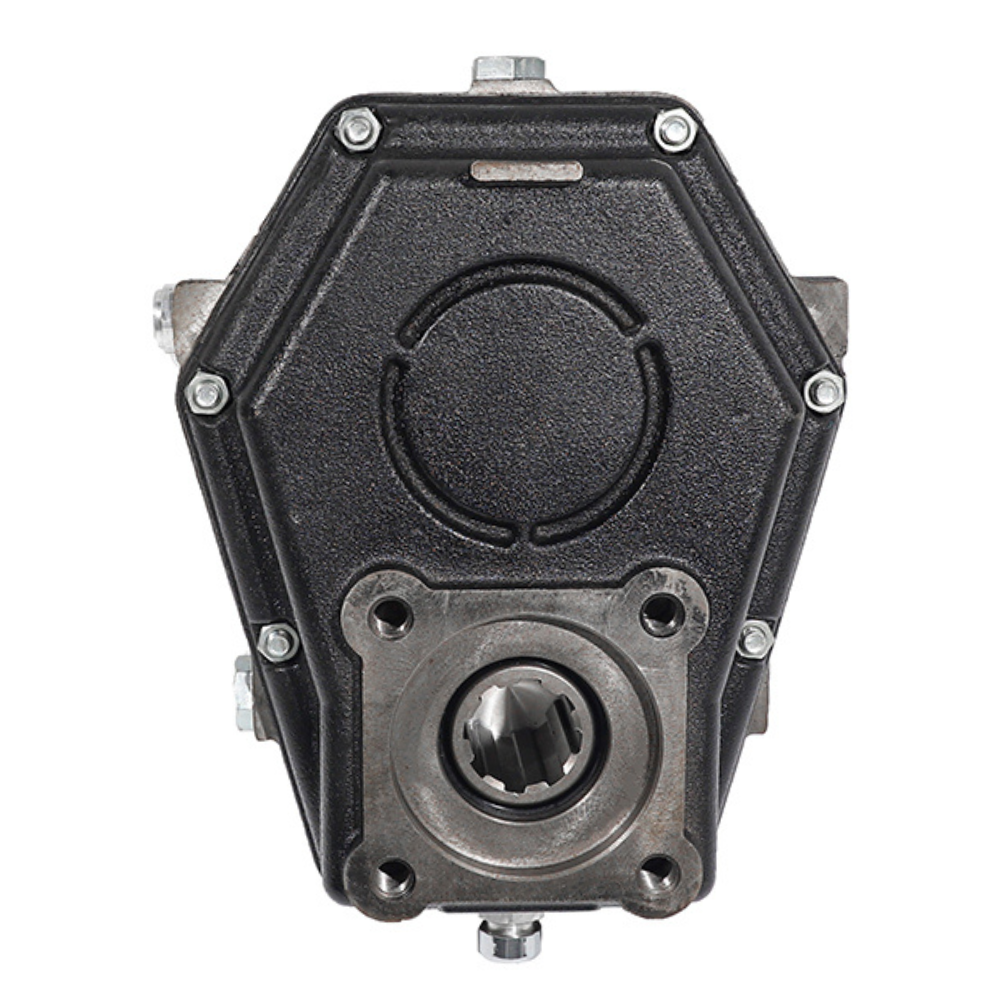

Hydraulic Cast Iron PTO Gearbox, 37kW, Quick Fitting Female Shaft, Ratio 1:3, 4 Bolt PTO Pump, Series 7204
KMT7204-4A
Cast iron hydraulic PTO gearbox rated to 37kW, with a quick-fitting female 1 3/8" DIN 9611 shaft, 1:3 ratio and compatibility with 4-Bolt PTO Truck Pump.
Product Features:
Series 7204 37kW Cast Iron PTO Gearbox - Quick-Fitting Female Shaft, 1:3, 4-Bolt PTO Pump
Product: Cast Iron Hydraulic PTO Gearbox 37kW Quick-Fitting Female Shaft Ratio 1:3 4-Bolt PTO Pump Series 7204
This cast iron hydraulic PTO gearbox converts PTO drive into dependable input speed for a compatible hydraulic pump.
Built with a cast iron housing, Quick-Fitting Female 1 3/8" DIN 9611 Shaft, a 1:3 transmission ratio and compatibility with 4-Bolt PTO Truck Pump.
Common Applications
- Truck and vehicle PTO hydraulic systems
- Tipping bodies and transport hydraulics
- Agricultural and industrial mobile equipment
- Hydraulic cylinders, motors and auxiliary circuits
- PTO-driven pump installations
- Mobile hydraulic power applications
Technical Data
| Specification | Details |
|---|---|
| SKU | KMT7204-4A |
| Gearbox Material | Cast Iron |
| Maximum Power | 37kW |
| Shaft Configuration | Quick-Fitting Female 1 3/8" DIN 9611 Shaft |
| Transmission Ratio | 1:3 |
| Pump Compatibility | 4-Bolt PTO Truck Pump |
| Product Series | 7204 |
| Input Torque | 660 Nm |
| Output Torque | 220 Nm |
| Input Speed | 540 r/min |
| Output Speed | 1620 r/min |
| Weight | 16 kg |

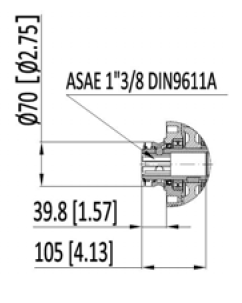

Dimensions & Shaft Configuration
KMT720 DIMENSIONS
FEMALE 1" 3/8" DIN 9611 SHAFT
Series Performance Data
The current 1:3 model is highlighted below.
| Input Torque (Nm) | Output Torque (Nm) | Input Speed (r/min) | Transmission Ratio | Output Speed (r/min) | Power (kW) | Weight (Kg) |
|---|---|---|---|---|---|---|
| 660 | 440 | 540 | 1.5 | 810 | 37 | 16 |
| 660 | 330 | 540 | 2 | 1080 | 37 | 16 |
| 660 | 264 | 540 | 2.5 | 1350 | 37 | 16 |
| 660 | 220 | 540 | 3 | 1620 | 37 | 16 |
| 660 | 180 | 540 | 3.5 | 1836 | 37 | 16 |
| 660 | 166 | 540 | 3.8 | 2052 | 37 | 16 |
Key Benefits
- Heavy-duty cast-iron construction for sustained operation under load
- Clearly specified 37kW rating and 1:3 ratio for easier system matching
- Quick-Fitting Female 1 3/8" DIN 9611 Shaft for the stated PTO connection
- Compatible with 4-Bolt PTO Truck Pump
- Serviceable gearbox design with standardised bearings, gears and seals
Application note: Confirm PTO speed, rotation, shaft connection, transmission ratio, pump mounting, mounting arrangement and required power before ordering.
Need Help Choosing the Right PTO Gearbox?
If you are unsure about pump compatibility, shaft type, transmission ratio, power rating or mounting, our team can help match the correct gearbox to your application.
Contact Us for expert advice, availability and delivery options.
