Hydraulic Quick Release Couplings: How They Work and Why They Matter

What are hydraulic quick release couplings?

Hydraulic quick-release couplings are specialized mechanical connectors designed for the efficient and tool-free connection and disconnection of hydraulic fluid lines. They are essential components in hydraulic systems, enabling users to quickly attach or detach hoses, pipes, or other components without the need to drain the hydraulic fluid entirely.

What are the main types of hydraulic quick release couplings?

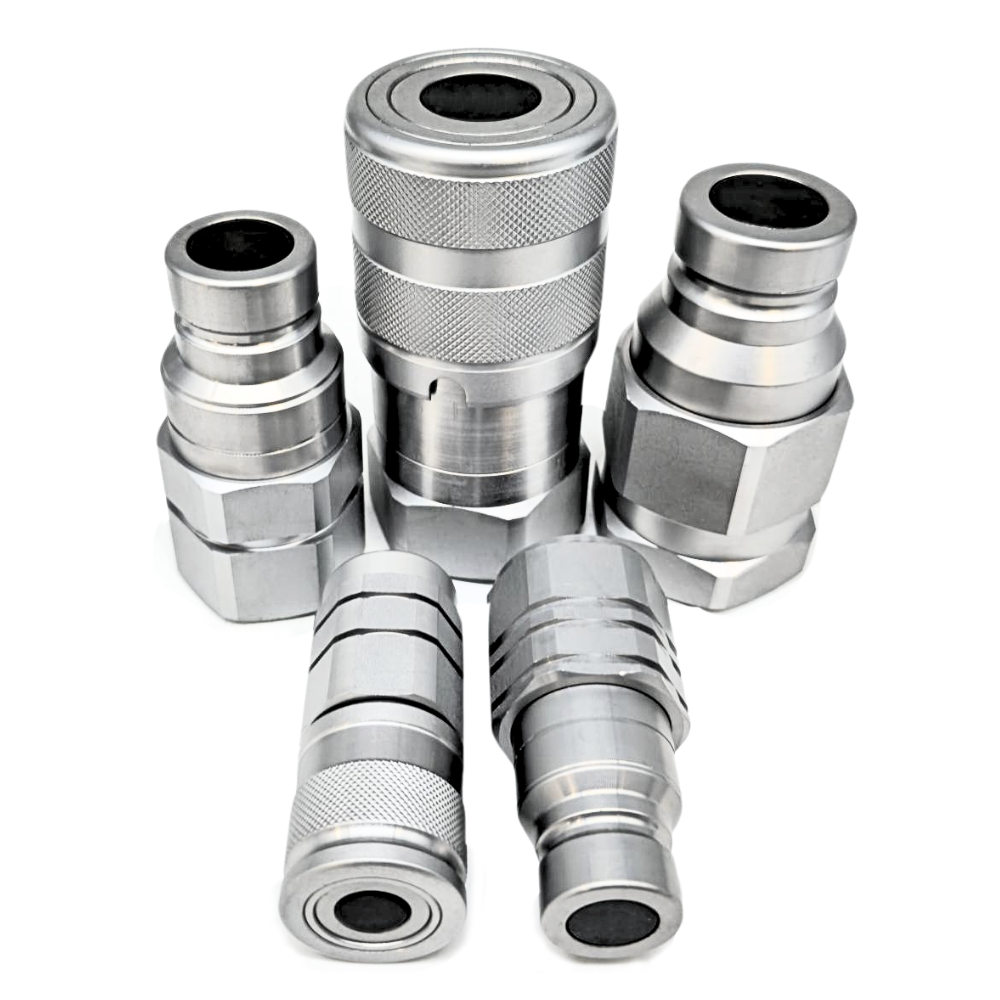

• Flat Face - Are a type of hydraulic coupling that is specifically designed to reduce fluid spillage and contamination during connection and disconnection. Unlike traditional couplings, which often have a more rounded or tapered face, Flat-Face couplings have flat surfaces on both the male (plug) and female (socket) components, allowing for a cleaner, more secure connection.

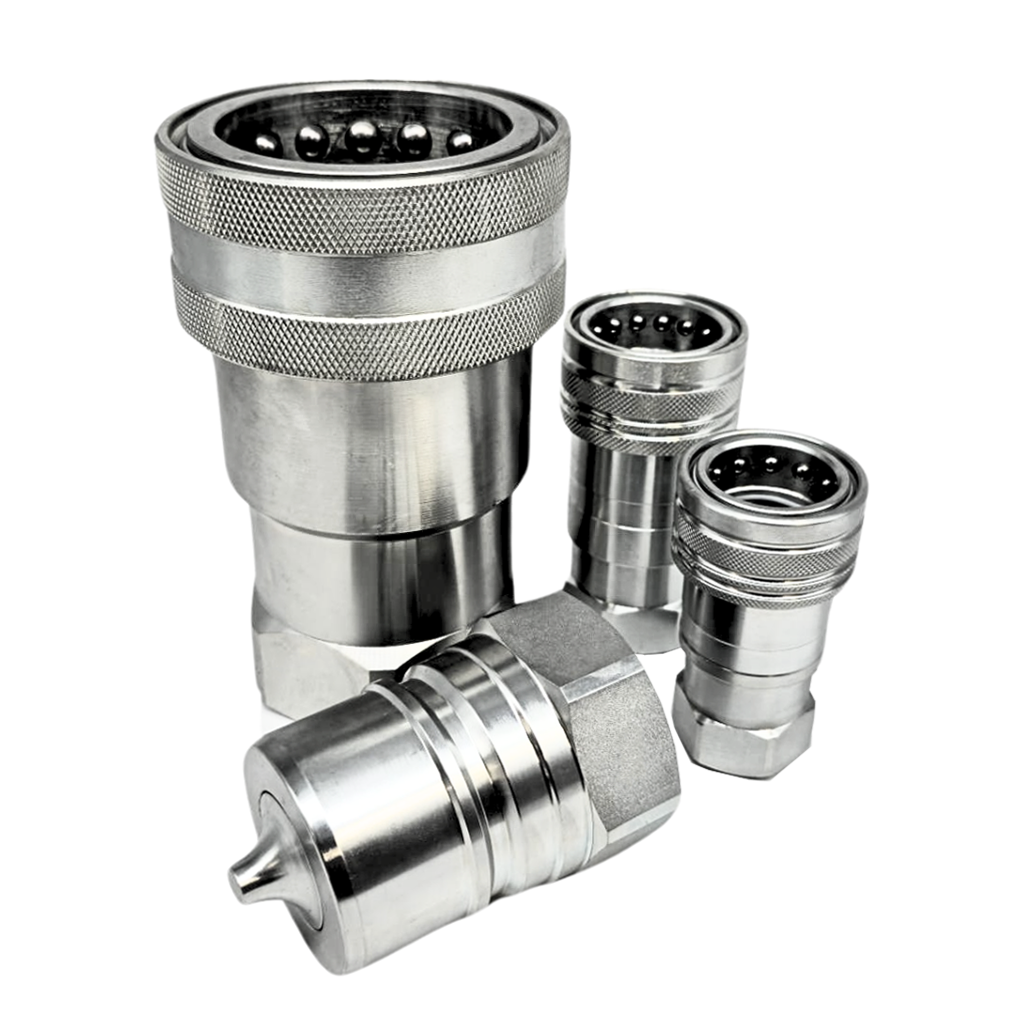

• ISO A -  Are specific type of hydraulic quick couplings that adhere to the ISO 7241-1 A standard, which defines the dimensions, design, and performance criteria for hydraulic couplings used in a wide range of industrial applications. These couplings are widely used to connect hydraulic fluid lines quickly and securely, enabling efficient disconnection and reconnection in various systems.
• Poppet valve - These couplings use a spring-loaded poppet valve to control fluid flow. The valve closes automatically when the coupling is disconnected, preventing fluid leakage.
• Push-Pull - Designed with a push-pull sleeve mechanism for easy one-handed connection and disconnection.

Where are hydraulic quick release couplings used?

1. Construction Industry - Frequent attachment and detachment of hydraulic hoses are required for different tools and attachments (e.g., augers, hammers, grapples).
2. Agricultural Machinery - Agriculture machinery often requires the connection of hydraulic-powered attachments (e.g., seeders, tillers, sprayers). Hydraulic quick-release couplings make these tasks faster, ensuring minimal fluid loss and protecting against contamination.
3. Industrial Equipment - In industrial environments, quick-release couplings are used to connect hydraulic lines in equipment where fast setup and changes are necessary, improving efficiency and reducing maintenance time.
4. Mining and Forestry - These industries require hydraulic systems to operate heavy-duty machinery. Quick-release couplings allow for safe and quick connection/disconnection in challenging environments, minimizing system downtime and reducing contamination risks.
5. Automotive Industry - Hydraulic quick-release couplings are used in automotive workshops for quick connection of hydraulic lines, particularly in car lifts, jacks, and other hydraulic-powered diagnostic tools.

What are the benefits of hydraulic quick release couplings?

1. Quick and Easy Connection/Disconnection
2. Minimization of Fluid Leakage
3. Reduced Contamination Risk
4. Increased Safety
5. Improved System Efficiency
6. Flexibility and Versatility
7. Cost-Effectiveness
8. Long-Term Durability
9. Compatibility Across Systems
10. Enhances Maintenance and Repair

How do you connect a hydraulic quick release coupling?

Connecting a hydraulic quick-release coupling is a straightforward process, but it must be done carefully to ensure a secure, leak-free connection and to maintain the integrity of the hydraulic system. Here’s a step-by-step guide on how to properly connect a hydraulic quick-release coupling:

1. Prepare the System: Ensure the system is depressurized: Before making any connections, ensure that the hydraulic system is depressurized to avoid any accidental fluid leakage or dangerous pressure build-up. This can be done by turning off the equipment or activating a pressure-release valve if available.
2. Align the Couplings: Position the coupling components: Align the male (plug) and female (socket) parts of the quick-release coupling so that they are properly oriented for connection. Depending on the type of coupling (e.g., ISO, flat-face), ensure the components are aligned in the correct direction to avoid cross-threading or misalignment.
3. Connect the Coupling: Push the components together: Insert the male coupling (plug) into the female coupling (socket). Ensure that the coupling is fully inserted and that the faces of the couplings are flush with each other.
4. Check for Proper Connection: Ensure a tight, secure fit: Gently tug on the coupling to make sure it’s properly locked in place. There should be no play or movement between the male and female parts.
5. Test the Hydraulic System: Activate the system: Once the coupling is securely connected, slowly activate the hydraulic system to check the operation. Monitor the system for any pressure drops or leaks around the coupling.
6. Safety Checks: Verify that no leaks are present: After connecting and pressurizing the system, check for leaks at the coupling connection. If there are any, depressurize the system and check the coupling components for damage or dirt that could be causing an improper seal.

How do you maintain hydraulic quick release couplings?

1. Regular Visual Inspections: Check for signs of physical damage, including cracks, dents, or wear on the coupling body, locking mechanisms, or seals.
2. Check for Leaks: After connecting the coupling and pressurizing the system, visually check for any hydraulic fluid leaks around the coupling. Look for dampness or fluid around the seals, connection points, or the locking mechanism.
3. Clean the Couplings: Use a clean cloth: Wipe the coupling components with a clean cloth to remove any dirt, oil, or fluid or use compressed air to blow out any dirt or particles from the internal parts of the coupling.
4. Inspect and Replace Seals: Seals are critical for preventing fluid leaks. If the seals are cracked, worn, or damaged, they must be replaced.
5. Lubricate the Couplings: Apply a small amount of hydraulic oil or coupling-specific lubricant to the moving parts, especially the locking mechanisms and seals.
6. Test the Functionality: After maintenance (cleaning, sealing, lubrication), manually operate the quick-release couplings to ensure they are functioning properly. Check that the locking mechanism is working smoothly and securely.
7. Keep the System Free of Air: Air trapped in the system can cause issues with performance, including erratic operation of hydraulic cylinders or motors. This is especially important when disconnecting and reconnecting hydraulic lines.
8. Prevent Contamination: Always cover open couplings with protective caps or plugs when not in use to prevent dirt, dust, and moisture from entering the coupling.

How do you choose the right hydraulic quick release coupling?
