Dock Leveller Power Units: How They Work, Applications & Key Benefits

A dock leveller power unit, also known as a dock leveller hydraulic power pack, is used to operate hydraulic dock levellers in loading bay environments. These compact hydraulic systems provide the oil flow and pressure needed to raise the dock platform and operate the lip, helping create a safe bridge between the warehouse floor and a lorry, trailer, or goods vehicle.

At Flowfit, we supply hydraulic power units for dock levellers designed to operate a single acting lift cylinder and a single or double acting lip cylinder. These units are ideal for replacement, repair, and new dock leveller applications.

Hydraulic circuit for dock leveller power unit — Example hydraulic circuit for a dock leveller power unit operating lift and lip cylinder functions.

How this hydraulic circuit supports dock leveller operation

This circuit is designed to control the hydraulic oil flow between the power unit, the lift cylinder, and the lip cylinder. The P port is the pressure line from the hydraulic pump, while the T and T1 ports return oil back to tank.

The A and B ports are the working ports used to operate the dock leveller cylinders. In a typical dock leveller system, one function raises the main platform using a single acting lift cylinder, while the other function operates the lip cylinder so the lip can be positioned onto the vehicle bed.

The valve arrangement helps direct oil to the correct cylinder at the correct time, while also controlling pressure and return flow. This allows the dock leveller to lift, deploy the lip, and lower in a controlled and repeatable way during loading bay operation.

What is a dock leveller power unit?

A dock leveller power unit is a self-contained hydraulic system that typically includes an electric motor, hydraulic pump, oil reservoir, manifold, valves, and control components. When the dock leveller is operated, the motor drives the pump and sends hydraulic oil through the circuit to move the lift and lip cylinders.

The power unit is one of the most important parts of a hydraulic dock leveller. It provides the controlled hydraulic movement needed to raise the platform, position the lip, and return the dock leveller safely after loading or unloading.

Quick takeaway

A dock leveller power unit powers the hydraulic movement of the dock platform and lip, making loading bay operations safer, smoother, and more efficient.

What are dock leveller power units used for?

Dock leveller power units are used in loading bays where goods need to be moved safely between a building and a vehicle. Because vehicle bed heights can vary, the dock leveller raises and lowers to suit the loading height, while the lip rests onto the vehicle bed to bridge the gap.

Raising and lowering hydraulic dock leveller platforms
Operating hinged lip dock levellers
Operating telescopic lip dock levellers
Powering single acting lift cylinders
Operating single acting or double acting lip cylinders
Supporting forklift, pallet truck, and goods handling operations
Replacing worn or damaged dock leveller hydraulic power packs

How does a dock leveller power unit work?

When the operator activates the dock leveller, the electric motor starts and drives the hydraulic pump. The pump draws oil from the reservoir and sends it through the valve arrangement to the hydraulic cylinders. The lift cylinder raises the platform, while the lip cylinder moves the lip into position.

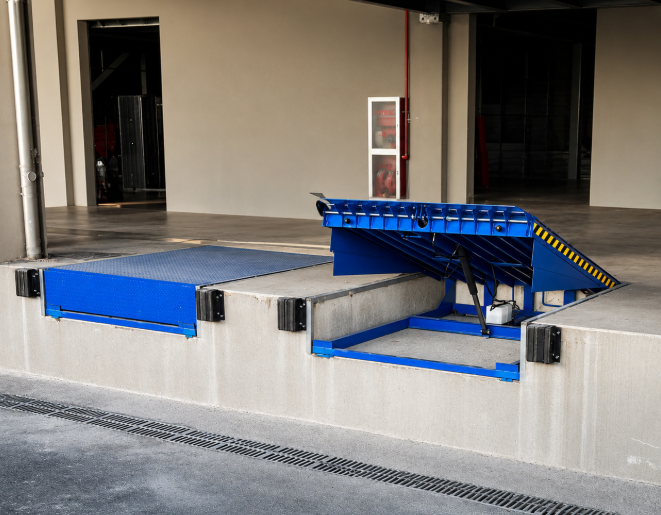

Hydraulic dock leveller installed in a loading bay — A hydraulic dock leveller installed in a loading bay, showing how the platform raises to bridge the gap between the warehouse floor and the vehicle bed.

In many dock leveller systems, the main platform is raised using a single acting hydraulic lift cylinder. Hydraulic pressure lifts the platform, while lowering is controlled through the hydraulic circuit and assisted by the weight of the dock leveller.

The lip cylinder may be single acting or double acting, depending on the dock leveller design. A single acting lip cylinder is commonly used for hinged lip systems, while a double acting lip cylinder may be used where powered extension and retraction are required.

Common applications for dock leveller power units

Hydraulic dock leveller power units are widely used across industrial, commercial, and logistics environments. They are suitable for both new dock leveller builds and replacement hydraulic power pack installations.

Application	How the power unit helps
Warehouses	Supports everyday loading, unloading, stock movement, and pallet handling.
Distribution centres	Provides reliable hydraulic operation for busy loading bays and frequent vehicle turnaround.
Manufacturing sites	Helps move raw materials, finished goods, pallets, and equipment between vehicles and production areas.
Retail logistics	Used in supermarket, retail, and e-commerce distribution hubs where speed and reliability are important.
Cold stores	Supports fast loading and unloading where temperature-controlled goods need to be moved efficiently.
Industrial loading bays	Suitable for demanding environments where strong hydraulic performance is required.

Advantages of hydraulic dock leveller power units

A correctly specified dock leveller hydraulic power unit can improve loading bay safety, reliability, and efficiency. Compared with manual or mechanical systems, hydraulic operation provides smoother movement and reduces the physical effort needed from operators.

Compact design: Suitable for fitting within or alongside dock leveller assemblies.
Reliable hydraulic performance: Designed for repeated loading bay operation.
Smoother movement: Helps control the raising, lip operation, and lowering sequence.
Improved loading bay safety: Supports controlled movement between warehouse floor and vehicle bed.
Reduced manual effort: Allows push-button hydraulic operation instead of manual lifting.
Flexible cylinder control: Suitable for single acting lift cylinders and single or double acting lip cylinders.
Replacement friendly: Can be supplied to replace worn, damaged, or obsolete dock leveller power packs.
Suitable for busy environments: Ideal for warehouses, logistics hubs, and industrial loading bays.

Key benefit

Dock leveller power units help improve loading bay productivity by providing reliable hydraulic control for the platform and lip, reducing downtime and making daily loading tasks easier.

Single acting lift cylinder operation

Most hydraulic dock levellers use a single acting lift cylinder to raise the main deck. The power unit supplies pressurised hydraulic oil to the lift cylinder, causing the dock platform to rise. When lowering, the system releases oil back to tank in a controlled way, allowing the deck to return safely.

This type of setup is popular because it is simple, effective, and well suited to the lifting movement required in dock leveller applications.

Single acting and double acting lip cylinder operation

The lip cylinder controls the front lip section of the dock leveller. This lip rests onto the vehicle bed and creates the bridge between the loading bay and the vehicle.

Single acting lip cylinder: Often used on hinged lip dock levellers where hydraulic pressure moves the lip in one direction.
Double acting lip cylinder: Used where hydraulic power is needed in both directions, such as powered extension and retraction on certain dock leveller designs.

Choosing the correct power unit and valve arrangement is important to ensure the lift and lip functions operate safely and reliably.

What information is needed when choosing a dock leveller power unit?

To select the correct replacement or new hydraulic power unit, it helps to confirm the dock leveller specification and hydraulic requirements. This ensures the power unit is matched correctly to the cylinder type, pressure, flow rate, and electrical supply.

Information required	Why it matters
Motor voltage	The power unit must match the available electrical supply.
Motor power	Helps ensure the unit can deliver the required hydraulic performance.
Pump flow rate	Affects the speed of the dock leveller movement.
Maximum pressure	Must be suitable for the lift and lip cylinder requirements.
Reservoir size	Ensures enough oil capacity for the hydraulic system.
Cylinder type	Confirms whether the system uses single acting or double acting cylinders.
Port configuration	Helps match the replacement power unit to the existing hydraulic pipework.

Selection tip

If you are replacing an existing dock leveller power unit, photos of the unit, hydraulic circuit, motor label, ports, and pipe connections can help identify the correct replacement.

Frequently asked questions about dock leveller power units

What does a dock leveller power unit do?

It provides the hydraulic power required to raise the dock leveller platform and operate the lip cylinder. This allows the dock leveller to bridge the gap between the loading bay and the vehicle bed.

Can one power unit operate both the platform and the lip?

Yes. A dock leveller power unit can be designed to operate both the single acting lift cylinder and the single or double acting lip cylinder using the correct hydraulic valve arrangement.

What is the difference between a single acting and double acting cylinder?

A single acting cylinder uses hydraulic pressure in one direction, with return movement normally assisted by gravity, spring force, or the load. A double acting cylinder uses hydraulic pressure in both directions for powered movement both ways.

Can I replace an old dock leveller power pack?

Yes. Replacement dock leveller power packs can often be supplied, but the new unit must be matched to the system pressure, flow rate, voltage, reservoir size, cylinder type, and port layout.

Where are dock leveller hydraulic power units commonly used?

They are commonly used in warehouses, distribution centres, loading bays, factories, cold stores, retail logistics sites, and industrial goods handling environments.
