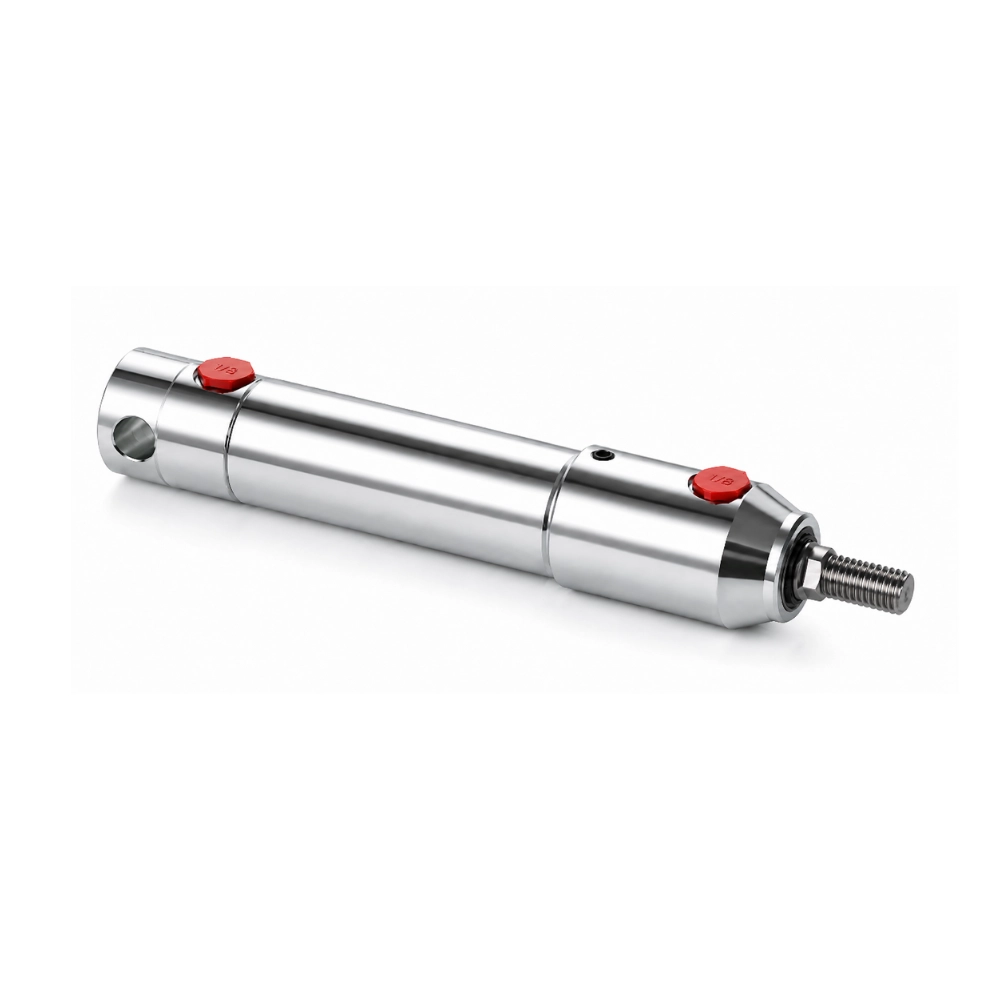

Mini Double Acting Hydraulic Cylinder 25mm Bore x 16mm Rod x 50mm Stroke

Product SKU:

71625/50

as low as
£140.44
£168.53 incl. VAT
Quantity:
minus
minus
In Stock
12 Month Warrantly
Mini double acting hydraulic cylinder with 25mm bore, 16mm rod, 50mm stroke and 146mm closed length for compact hydraulic applications.

Product Features:

Compact mini hydraulic cylinder for tight-space applications
25mm bore, 16mm rod and 50mm stroke
Closed length measurement: 146mm
Compact design for tight hydraulic installations
1/8" BSP ports for hydraulic connection

Customers who bought this product also bought these

Compact Mini Hydraulic Ram 25mm Bore x 16mm Rod x 50mm Stroke

This Mini Double Acting Hydraulic Cylinder 25mm Bore x 16mm Rod x 50mm Stroke is designed for compact hydraulic systems requiring controlled powered extension and retraction.

It features a 25mm bore, 16mm rod, 50mm stroke and 146mm closed length, with the dimensional image and model comparison table included below for checking related sizes before ordering.

SpecificationDetails
SKU / model code71625/50
Product typeMini double acting hydraulic cylinder / ram
Bore25mm
Rod16mm
Stroke50mm
Closed length146mm
Rod threadM12
Port size1/8" BSP
Oil volume31 cm³
Weight0.94 kg

Common applications & operating notes

Suitable for compact machinery, small hydraulic actuators, agricultural equipment, light industrial systems and replacement ram applications where space is limited.

Note: maximum working pressure 200 bar, maximum test pressure 300 bar, maximum working speed 0.5 m/s and working temperature -30ºC to +90ºC.

Mini Double Acting Hydraulic Cylinder 25mm Bore x 16mm Rod x 50mm Stroke dimensional drawing

MODEL COMPARISON

SKUØAØBSTROKE ZECDFGHIJKLMNVOL (cm³)WEIGHT (KG)
71625/50162550146111240357265182522M129310.94
71625/10016251001961112403512265182522M129561.22
71625/15016251502461112403517265182522M129801.50
71625/20016252002961112403522265182522M1291051.78

MINI DOUBLE ACTING HYDRAULIC CYLINDER

Characteristics

- Maximum working pressure: 200 bar

- Maximum testing pressure: 300 bar

- Maximum working speed: 0.5 m/s

- Working temperature: -30 ºC to +90 ºC.

- Oil: mineral hydraulic.

Materials

- Rod: chrome plated steel F-1140 with minimum 20 micron chrome layer.

- Tube: steel ST-52-3, DIN 2393, inside diameter tolerance ISO H9.

- Guide-bushing and piston: steel F-1140.

Seals

- Compact polyurethane rod seal with NBR metal wiper seal.

- Double-acting polyurethane piston seal with nitrile O-ring activator.

Recommendations

- Protect the cylinder circuit with a relief valve set at 200 bar.

- Check oil cleanliness and use filtration to protect the hydraulic circuit.

- Bleed the circuit by slightly loosening the cylinder fittings before start-up.

- Protect the rod and oil ports during high-pressure cleaning or blasting.
