Mechanical Clutch Assemblies

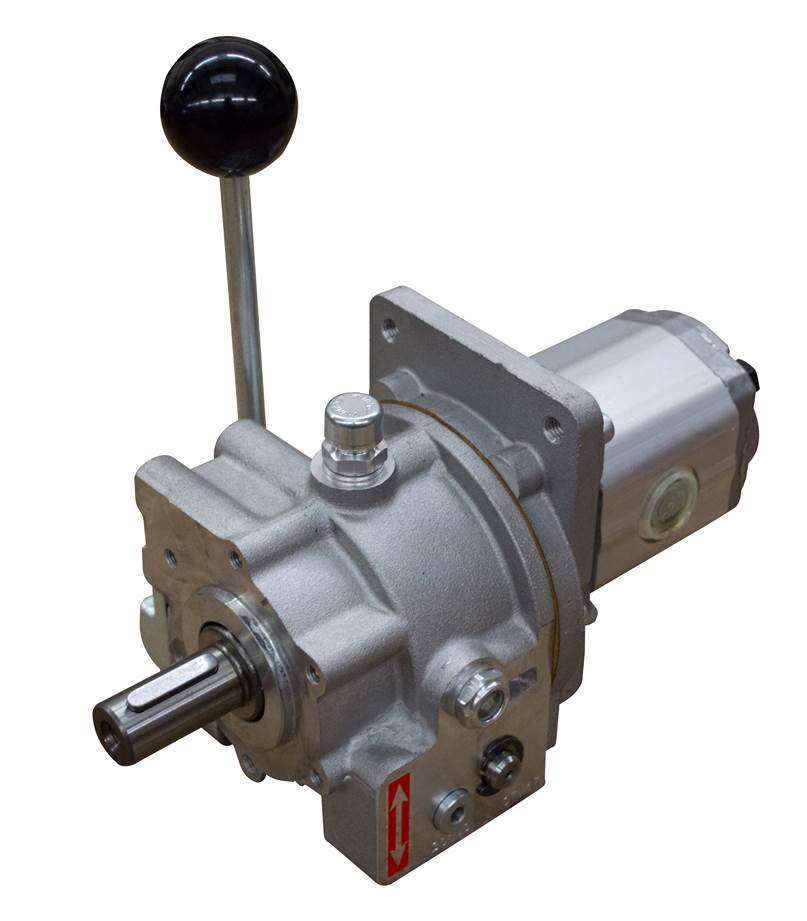

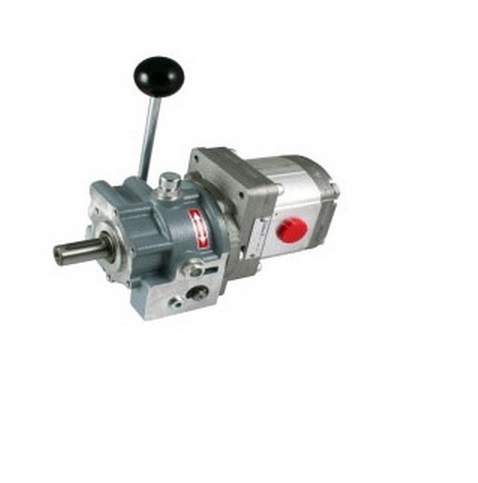

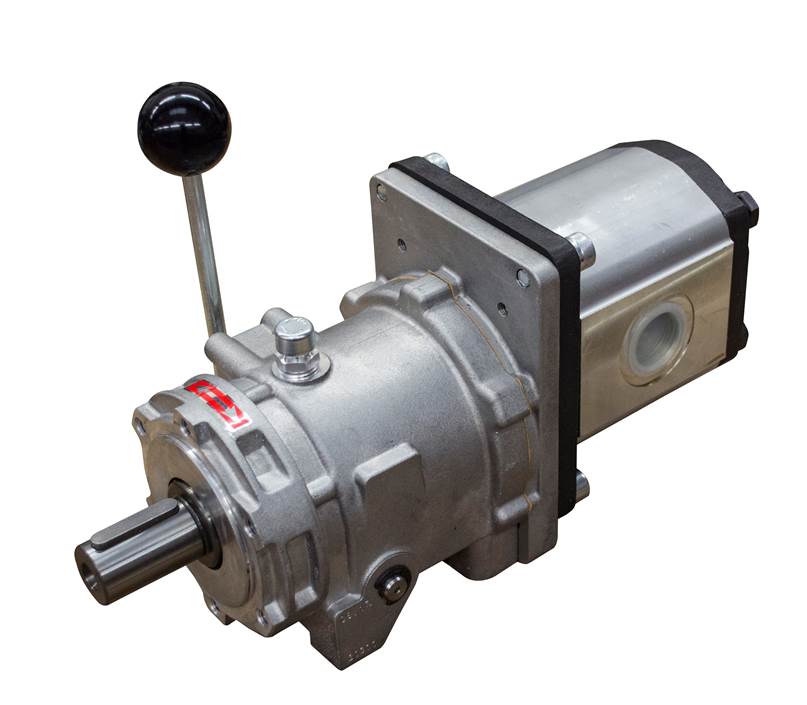

Mechanical Clutch and Hydraulic Pump Assemblies

Flowfit supplies complete mechanical clutch and hydraulic pump assemblies for marine, agricultural and industrial applications. Each assembly combines a robust mechanical clutch with a matched Group 1, Group 2 or Group 3 hydraulic pump, providing a convenient solution for controlled hydraulic power transmission.

Available in a range of pump displacements and flow rates, these assemblies are particularly suited to marine winches, windlasses, deck machinery, agricultural equipment and industrial hydraulic systems.

How Does a Mechanical Clutch Pump Assembly Work?

The mechanical clutch connects and disconnects the power source from the hydraulic pump. When engaged, rotational power from an engine, motor, pulley drive or gearbox is transferred to the pump, producing hydraulic flow for the connected equipment. Disengaging the clutch allows the pump drive to be stopped when hydraulic power is not required.

This arrangement gives the operator reliable control over the hydraulic system while helping reduce unnecessary pump operation and component wear.

Available Pump Groups, Displacements and Flow Rates

Our mechanical clutch assemblies are available with Group 1, Group 2 and Group 3 hydraulic pumps. Product options cover multiple displacements and flow rates, allowing the assembly to be matched more closely to the requirements of the hydraulic circuit.

Selected assemblies are supplied with Walvoil hydraulic pumps. The product title and specification table identify the pump manufacturer, pump group, displacement and stated flow rate for each model.

Mechanical Clutch Assembly Applications

• Marine equipment – Suitable for hydraulic winches, windlasses and deck machinery.
• Agricultural machinery – Ideal for tractors, trailers and auxiliary hydraulic systems.
• Industrial equipment – Provides controlled pump engagement for machinery and processing systems.
• Mobile hydraulics – Suitable for equipment requiring an engine-driven hydraulic power source.
• Gearbox and pulley drives – Can be incorporated into a variety of mechanical drive arrangements.

Key Features of Our Mechanical Clutch Pump Assemblies

• Complete mechanical clutch and hydraulic pump assembly
• Available with Group 1, Group 2 and Group 3 pumps
• Multiple pump displacements and flow rates available
• Clockwise pump rotation as supplied
• Anticlockwise pump versions available upon request
• Strong and dependable torque transmission
• Suitable for marine, agricultural and industrial applications
• Walvoil pump options available on selected assemblies

Choosing the Correct Mechanical Clutch Assembly

When selecting an assembly, check the required pump group, displacement, flow rate, operating speed and direction of rotation. The hydraulic system pressure and intended duty cycle should also be considered to ensure the pump is suitable for the application.

Our product pages include the relevant specifications and five key product features to help you compare the available options. Contact our technical team when assistance is required with pump selection or compatibility.

Need More Help Choosing a Mechanical Clutch?

For more information about clutch types, torque requirements, pump compatibility, mounting arrangements and direction of rotation, read our guide: Need a Mechanical Clutch? Here’s How to Choose the Right Option.

Technical Specifications and Downloads

Available technical documents can be found on the relevant product page. Select the required mechanical clutch assembly and open the download section to view the supporting product information.

Order Mechanical Clutch and Pump Assemblies from Flowfit

Flowfit offers a carefully selected range of mechanical clutch pump assemblies, supported by knowledgeable product advice and reliable UK and international delivery.

For help selecting the correct assembly, call 01584 876 033 or email sales@flowfitonline.com.
