Portable Manual Hose Crimping Machine – Max. 1″ (DN25, -16) – Separate Hand Pump
FFS16/80T-KIT
Product Features:
Customers who bought this product also bought these
Portable Manual Hose Crimping Machine – Max. 1″ (DN25, -16) – Separate Hand Pump
This listing includes a 1" die set only. If you require a different die size, please view our individual die listings.
*90° elbow limitation: Maximum 1/2" (DN12). Not suitable for crimping 3/4" or 1" 90° elbows.

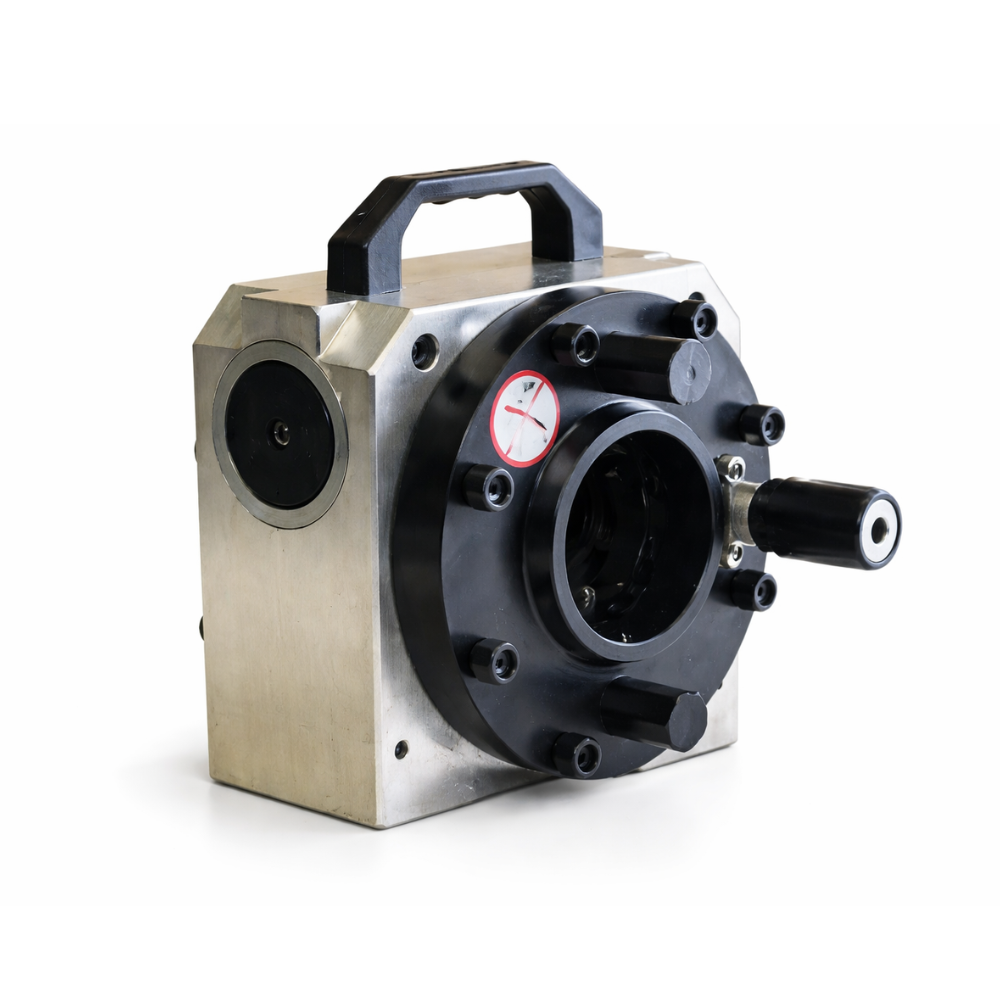

The Flowfit FFS16/80T Portable Hose Crimping Head With Hand Pump (supplier model NKS16) is designed for efficient on-site hydraulic hose assembly and repair, particularly where space, access, or power supply is limited.
The integrated magnetic crimping head allows the unit to be securely positioned at a convenient working height or mounted directly onto machinery such as booms or frames. This enables hoses to be repaired in situ, significantly reducing downtime and eliminating unnecessary dismantling.
Please note: This listing is for the crimping head only. Die sets are not included and must be purchased separately unless otherwise stated.
Key Features
- Magnetic crimping head with split hand pump for easier and safer on-site operation
- Balanced, compact design for stable positioning and comfortable handling
- Proven, reliable crimping technology suitable for demanding field use
- Double-stage manual hand pump for fast approach and controlled high-pressure crimping
- Crimping head protected by integrated foam inserts to reduce wear and impact damage
What’s Included
- Portable Hose Crimping Machine with double-stage hand pump
- 1 metre of Vincke EN853 2SN 3/8" hose (assembled with 2 × 3/8" ferrules and BSP male fittings)
- 6 × 3/8" bonded seals
- 6 × ISO A QRC 3/8" male couplings
- 6 × ISO A QRC 3/8" female couplings
Technical Information
| Specification | Details |
|---|---|
| Indicative Hose Capacity | 2-SN: up to 1" (DN25) 4-SP: up to 3/4" (DN19) |
| 90° Elbow Assembly | Maximum 1/2" (DN13) |
| Pump Type | Double-stage hand pump (25 cm³ + 5 cm³), max 320 bar |
| Radial Press Force | 80 tonnes at 320 bar |
| Opening Capacity | Die size + 20 mm 56 mm opening without dies |
| Available Die Sizes | Ø 4 / 6 / 10 / 12 / 15 / 18 / 21 / 24 / 27 / 30 mm 1" crimp via direct master-die size 39 mm |
| Crimping Head Dimensions | 240 × 240 × 240 mm (W × D × H) |
| Hand Pump Dimensions | 360 × 130 × 360 mm (L × W × H) |
| Net Weight | 20 kg – magnetic head (NKS16.1) 9 kg – hand pump support with drawer (NKS16-HP1) |
Recommended Die Numbers for Flowfit EN853 2SN Hose
When crimping Flowfit 2-wire EN 853 2SN hose , the following die numbers are typically recommended as a starting point:
| Die Number | Hose Diameter | Crimping |
|---|---|---|
| 18 | 1/4" | 18.7 mm |
| 18 | 5/16" | 19.6 mm |
| 21 | 3/8" | 21.5 mm |
| 24 | 1/2" | 24.7 mm |
| 27 | 5/8" | 28.8 mm |
| 30 | 3/4" | 32.2 mm |
| 39 | 1" | 41.6 mm |
Hose Compatibility
- 1/2-wire braids and textile: up to 1"
- 4-wire spirals: up to 1/2"
Hose examples: Tractor, Harvester, Lyteflex, Pilot, Equator, Rockmaster, Shieldmaster, Astro, Goldenspir/12 & 4SP, Rockmaster/12 & 4SP.
Need a Different Die Size?
If you’re not crimping 1" hose, you may need a different die set. Browse our individual die listings, or choose the complete die kit for the widest compatibility. If you’re unsure what you need, contact us and we’ll help match your hose, fittings and application.
