Filtrec FLSA Hydraulic Oil Sight Gauge, 1/4" BSP

Filtrec FLSA Hydraulic Oil Sight Gauge, 1/4" BSP

Product SKU:

FLSAB1

as low as

£1.95

£2.34 incl. VAT

Thread Size

Quantity:

In Stock

12 Month Warrantly

FLS is a range of compact oil sight gauges for monitoring the fluid level in the tank. They are directly fitted on the tank side. Several configurations can be selected to meet every condition: sizes, body, and lens materials.

Product Features:

Body: Aluminium alloy Lens: Polyamide Seals: Flat fiber gasket

Pressure Max operating: up to 5 bar

1/4" BSP

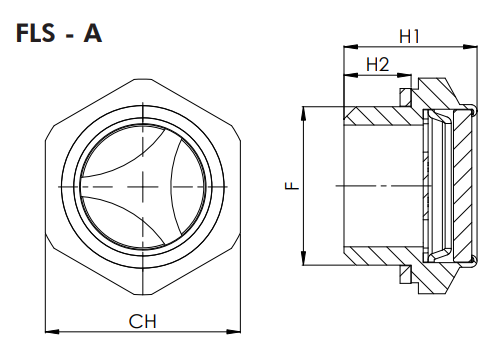

FLSA Aluminium Body & Polyamide Lens

PART NUMBER	THREAD SIZE	CH	H1	H2	CODE	WEIGHT (GR)
FLSAB1	1/4" BSP	17	18,8	8	B1	5
FLSAB2	3/8" BSP	22	18	9	B2	9
FLSAB3	1/2" BSP	27	20	9	B3	15
FLSAB4	3/4" BSP	32	22	11	B4	22,5
FLSAB5	1" BSP	40	22	10	B5	35
FLSAB6	1 1/4" BSP	50	27	12	B6	60
FLSAB7	1 1/2" BSP	55	26	13	B7	80
FLSAM14	M14 X 1.5	17	17	8	M14	5
FLSAM16	M16 X 1.5	22	18	9	M16	8,5
FLSAM18	M18 X 1.5	22	18	9	M18	14
FLSAM20	M20 X 1.5	24	21	10	M20	12
FLSAM22	M22 X 1.5	27	20	9	M22	15
FLSAM24	M24 X 1.5	30	24	11	M24	22,5

PRESSURE: Max operating: up to 5 bar(20 bar for FLSV)

FIXING SCREWS: Metric – tightening torque 10 Nm

MAX WORKING TEMPERATURE :- 10° C + 100° C (+ 130° C for FLSV)

MATERIALS:

For FLSP version
Body: Polyamide
Lens: Polyamide
Seals: Flat fiber gasket

For FLSA version
Body: Aluminium alloy
Lens: Polyamide
Seals: Flat fiber gasket

For FLSV version
Body: Aluminium alloy
Lens: Glass
Seals: Flat fiber gasket

FLUID COMPATIBILITY: Full with HH-HL-HM-HV-HETG-HEES(acc. to ISO 6743/4).For use with other fluid please contact us.
