Walvoil DF10, 3 Way, 1/2" BSP, Closed Centre, Cam Controlled, Diverter Valve, Manual Spool, Spring Return, 90 L/min, 315 bar
124074050
Product Features:
Customers who bought this product also bought these
Walvoil DF10, 3 Way, 1/2" BSP, Closed Centre, Cam Controlled, Diverter Valve, Manual Spool, Spring Return, 90 L/min, 315 bar
Walvoil DF10 3-way diverter valve is a compact and robust solution designed for efficient hydraulic flow switching in mobile and industrial systems. With a closed centre spool configuration, it ensures controlled flow management and system stability when switching between circuits.
This valve features cam operation combined with a manual spool and spring return in position 1, providing reliable and precise operation. Its design makes it ideal for applications requiring consistent mechanical control without the need for electrical input.
With a maximum flow rating of 90 l/min and a maximum operating pressure of 315 bar, the DF10 is well suited for demanding hydraulic environments. The 3-way configuration allows effective diversion of flow between two circuits, improving system flexibility.

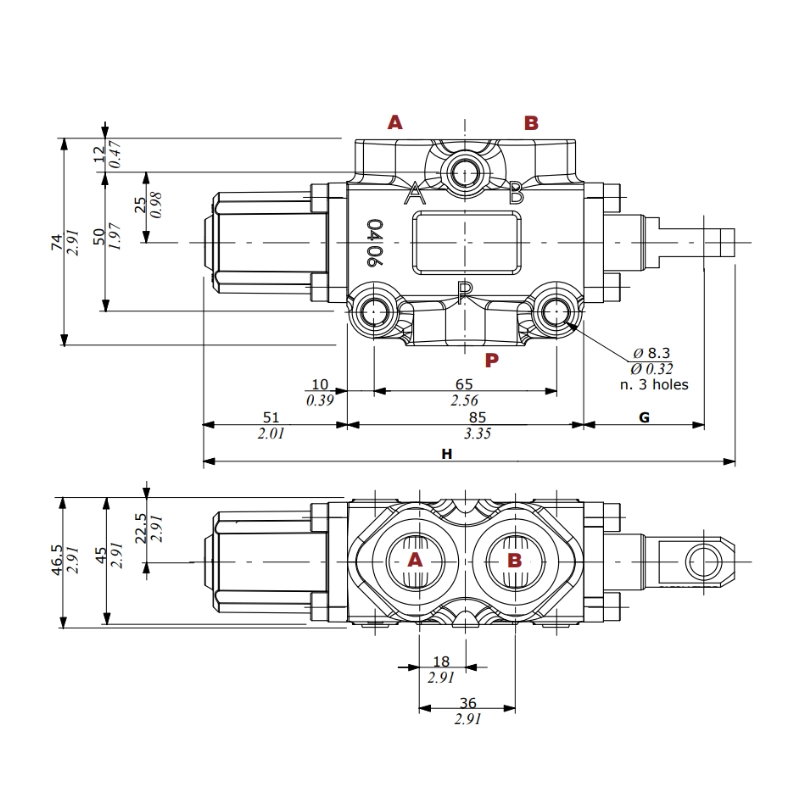

Configuration Breakdown - DF10/3BC17CB
| Code | Description |
|---|---|
| DF10 | Walvoil DF10 series hydraulic diverter valve |
| /3 | 3-way valve configuration |

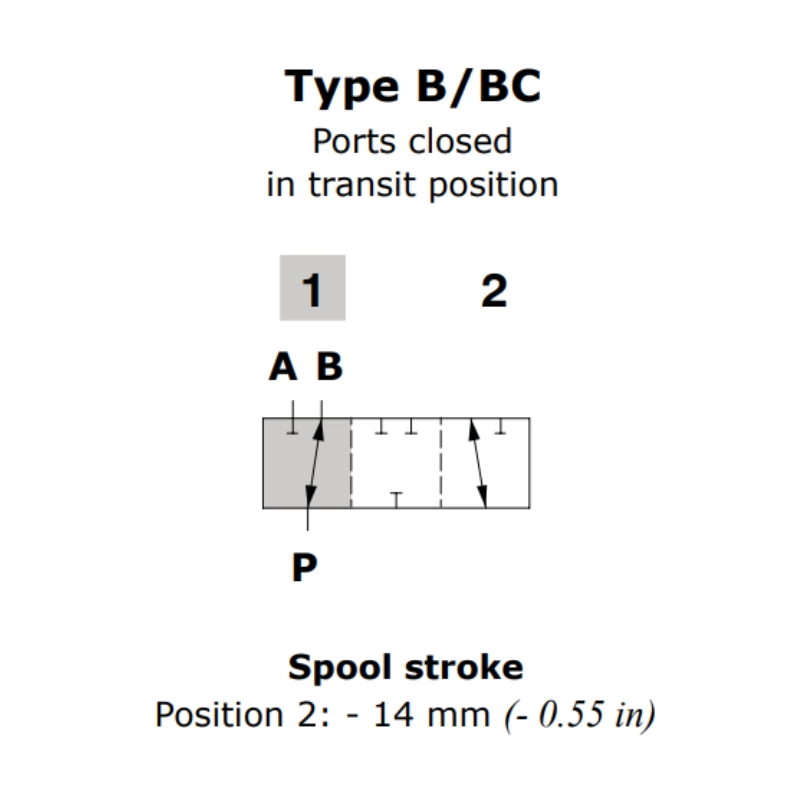

| BC | Closed centre spool |

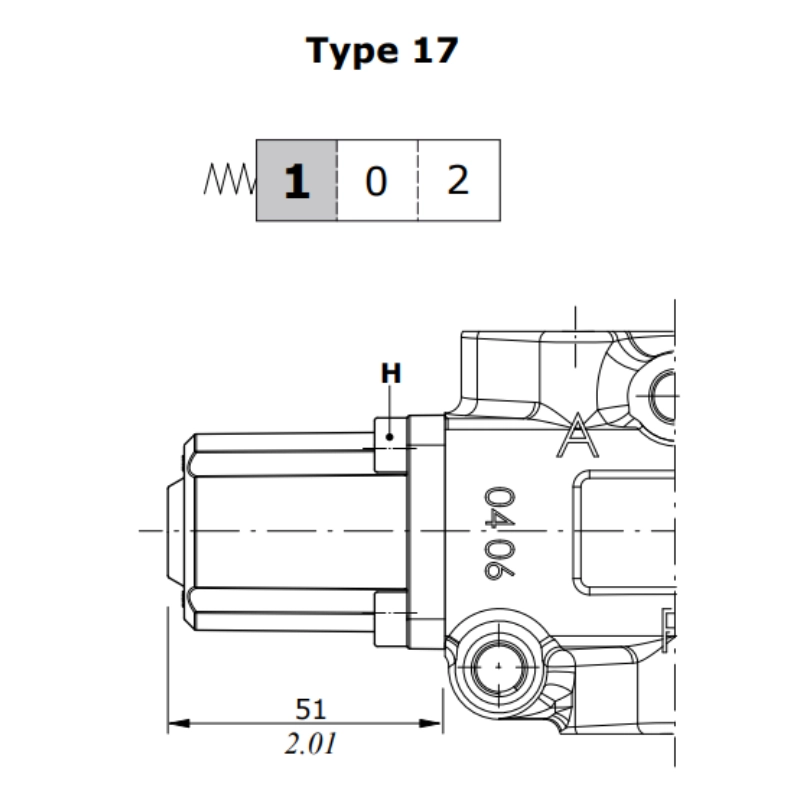

| 17 | Spring return in position 1 |

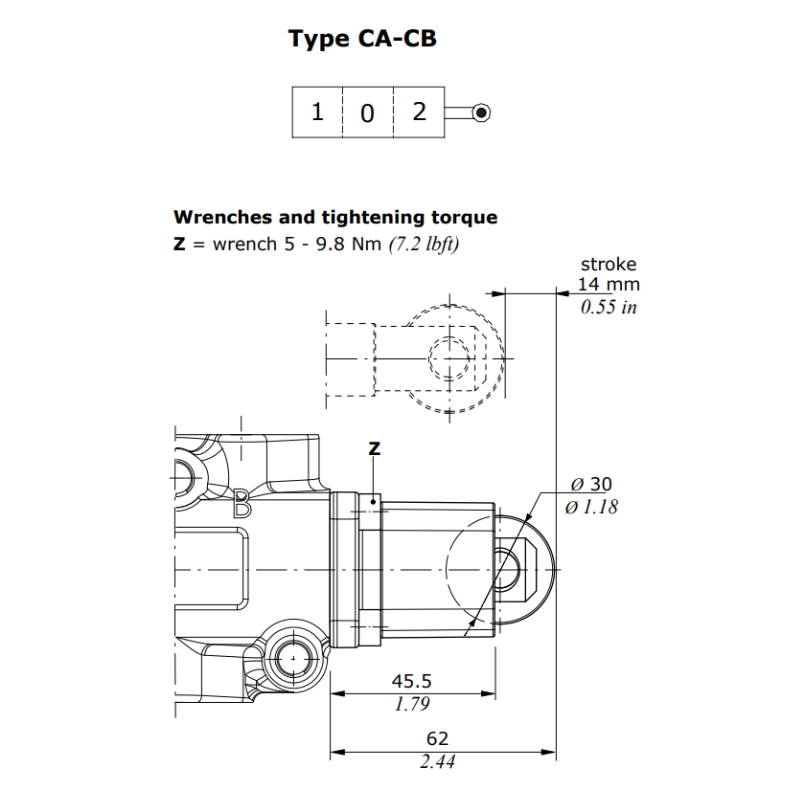

| CB | Cam operation |
Technical Specifications
| Specification | Details |
|---|---|
| Valve type | 3-way diverter valve |
| Spool type | Closed centre |
| Operation | Cam operated manual spool |
| Return type | Spring return in position 1 |
| Port size | 1/2" BSP |
| Maximum flow rating | 90 l/min |
| Maximum operating pressure | 315 bar |
Common Applications
The Walvoil DF10 diverter valve is widely used in hydraulic systems where flow needs to be redirected between circuits. Typical applications include:
- Agricultural machinery – switching between implements and auxiliary functions
- Construction equipment – controlling attachments such as grabs, buckets, and augers
- Truck and vehicle hydraulics – flow diversion for cranes and body systems
- Industrial hydraulic systems – directing flow between different hydraulic operations
- Mobile machinery – improving system versatility with simple manual control
