The Power Behind the Lift: Understanding Telescopic Cylinders

Telescopic cylinders (also known as tipping cylinders) are multi-stage hydraulic cylinders designed to provide a long stroke while remaining compact when retracted. Their nested design makes them ideal for tipping, lifting, and heavy-duty mobile applications.

What are telescopic cylinders?

Telescopic cylinders consist of multiple nested stages that extend sequentially. Each stage slides out from within the previous one, similar to how a telescope extends. This allows the cylinder to achieve a much greater extension length than a single-stage cylinder, while maintaining a compact retracted size.

How do telescopic cylinders work?

Telescopic cylinders use hydraulic pressure to extend and retract multiple nested stages. When pressurised fluid enters the cylinder, the smallest stage extends first, followed by the next, and so on until full extension is reached. Retraction occurs in reverse order.

Main applications of telescopic cylinders

Telescopic cylinders combine powerful lifting capability, extended reach, and compact storage, making them essential across multiple industries:

1. Construction & heavy machinery
   Used in cranes to extend booms and lift materials at height while remaining transport-friendly.
2. Dump trucks
   Provide the lifting force required to tip truck beds and unload materials efficiently.
3. Garbage trucks
   Used for compaction and tipping mechanisms in waste management vehicles.
4. Agricultural equipment
   Common in loaders, telehandlers, and tractors for lifting and material handling.
5. Mining equipment
   Used in excavators and heavy machinery to extend digging arms and reach difficult areas.

Example: How a telescopic cylinder powers a tipping mechanism

Advantages over standard single-stage cylinders

• Compact and efficient — long stroke with minimal retracted length.
• Greater lifting power — capable of handling heavy loads.
• Increased reach — ideal for high-angle tipping and long extension needs.
• Versatility — adaptable to many industries and applications.
• Precise movement — controlled, staged extension and retraction.
• Cost-effective — reduces the need for bulky mechanical linkages.

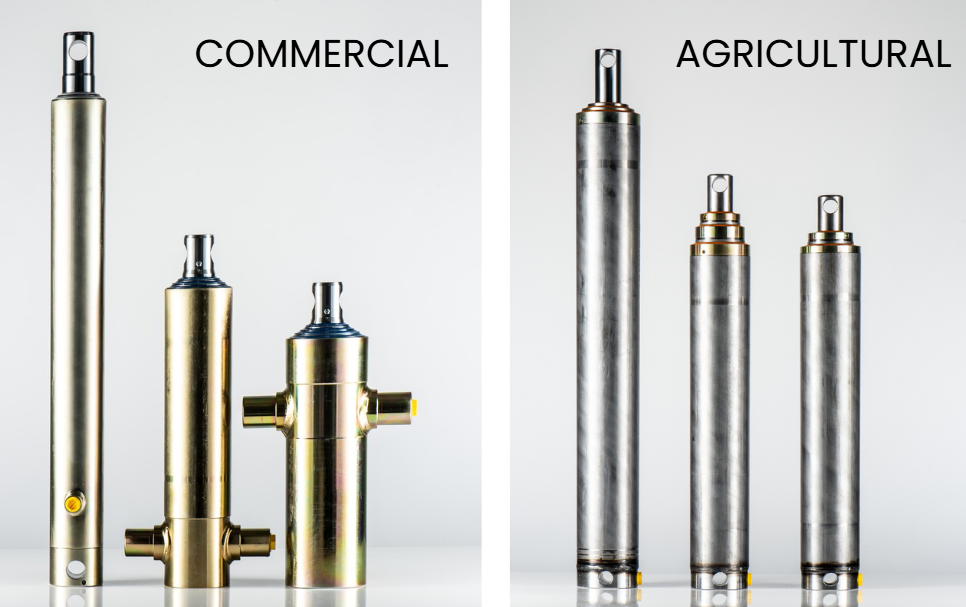

Commercial vs Agricultural telescopic cylinders

Commercial telescopic cylinders

Designed for heavy-duty machinery such as cranes, dump trucks, and waste vehicles. Built to withstand harsh industrial environments and higher lifting capacities.

Mounting options available:

• Bottom Mounted — Ideal for base-mounted tipping systems.
• Top Mounted — Suitable where top positioning improves reach and stability.
• Pin Mounted — Secure mounting for demanding lifting operations.

Agricultural telescopic cylinders

Designed for farming equipment, offering reliable performance and moderate lifting capacities suited to agricultural machinery.

Available options:

• Metric — Commonly used in European agricultural equipment.
• Chromed Metric — Enhanced resistance to corrosion and wear.
• Imperial — Compatible with machinery using imperial measurements.

Why buy telescopic cylinders from Flowfit?

• Premium quality — Built from high-grade materials for durability and performance.
• Comprehensive range — Multiple mounting and specification options available.
• Customisable solutions — Tailored cylinders for construction, agriculture, and industry.
• Free UK shipping — On orders over £99.99.
• Global shipping — Reliable delivery worldwide.

Browse our selection of commercial & agricultural telescopic cylinders today and find the right solution for your machinery.
