50mm Stroke PS6500 Cylinder Sensor (SW Single Sensor)
PS6501-SW
Product Features:
50mm Stroke PS6500 Cylinder Sensor (SW Single Sensor)
Code: PS6501
PS6501 Cylinder Sensor, 50 mm Stroke (SW Single Sensor) is a compact position sensor designed for accurate linear measurement in hydraulic cylinders.
Featuring a pressure-resistant glass-to-metal sealed header and conductive plastic sensing element, it offers reliable performance, long service life, and stable output in demanding environments.
The sensor provides an absolute analogue output, meaning no reset is required after power loss, making it easy to integrate into control systems.
Ideal for: Hydraulic cylinders, mobile hydraulics, industrial machinery and automation systems.
Version: SW - Single sensor element (single output)
Key Features
- High pressure resistance up to 350 bar
- Excellent repeatability of <±0.02%
- Absolute analogue output with no reset required
- Pressure-sealed stainless steel sensor head
- Long service life with conductive plastic sensor element
Applications: Hydraulics, Presses, Mobile Equipment, Industrial Automation, Machinery

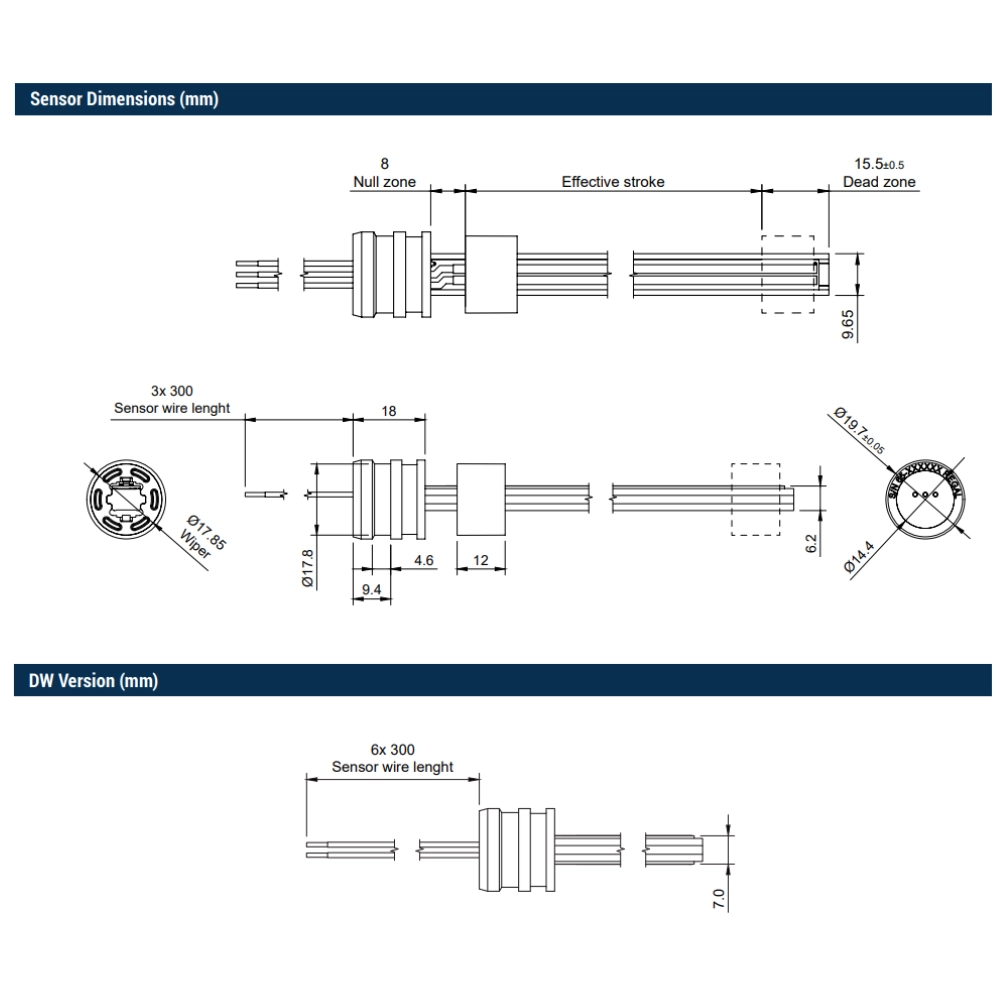

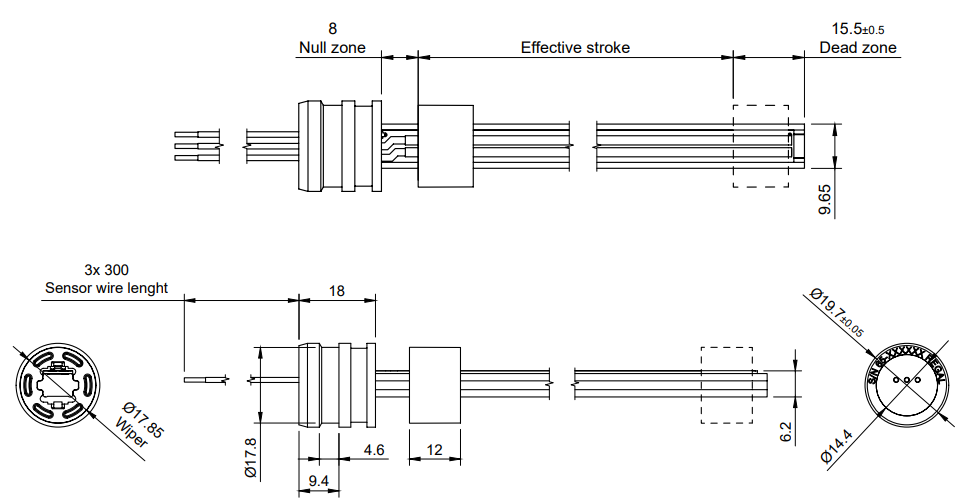

Sensor Dimensions

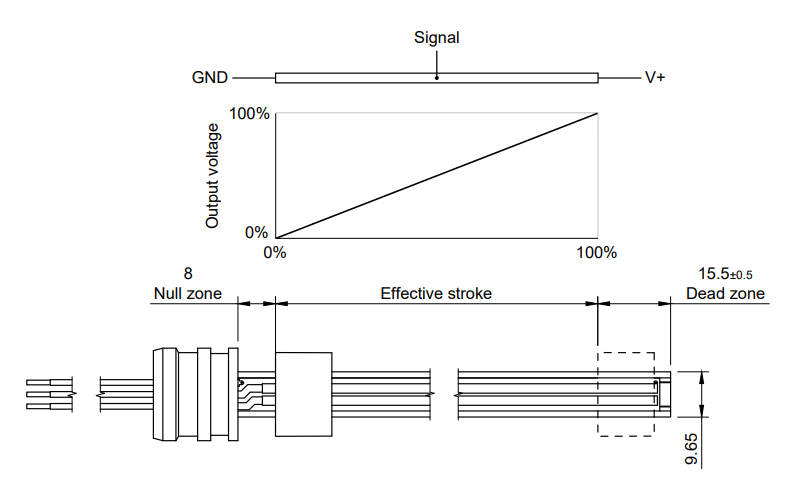

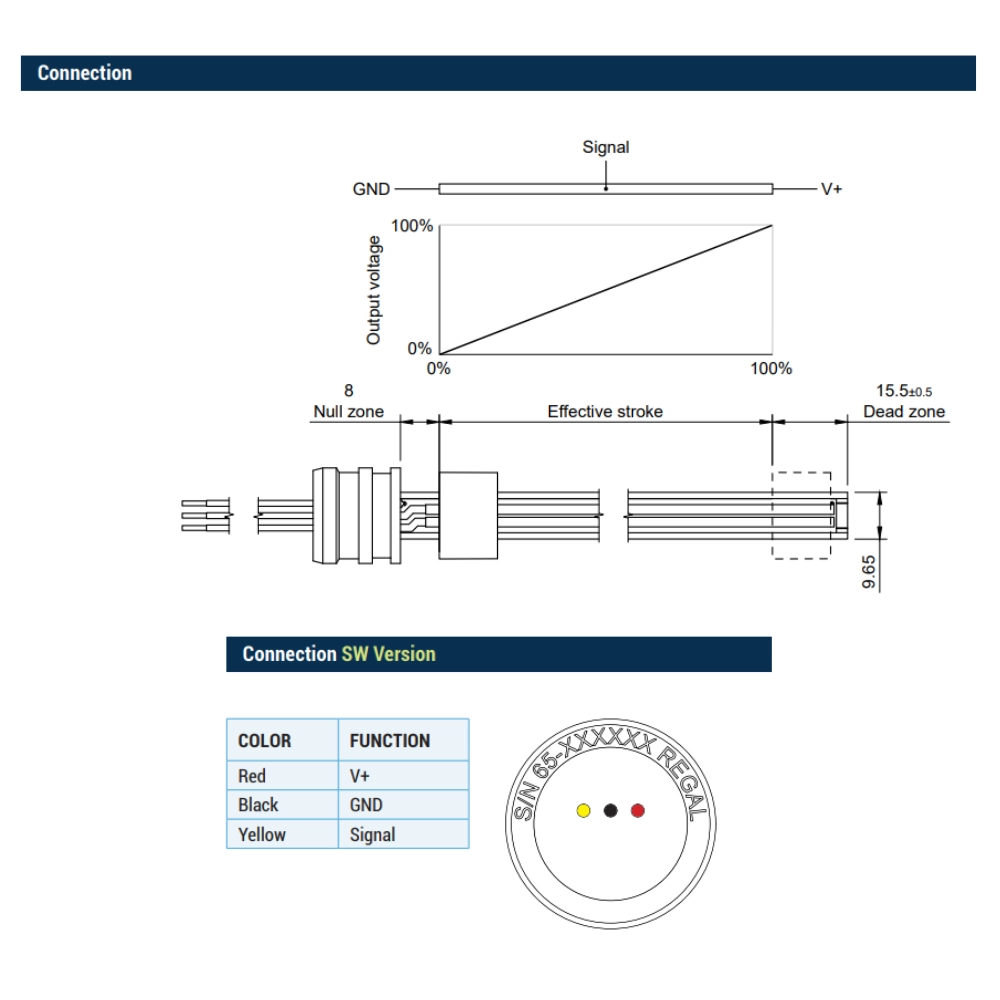

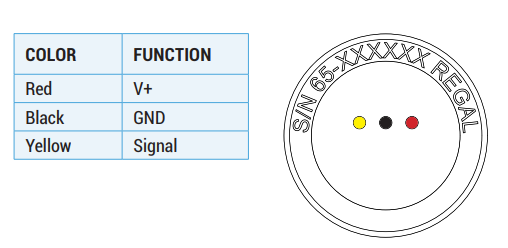

Connection
Technical Specifications
| Stroke | 50 mm |
| Resistance | 1.6 kΩ ±20% |
| Output Signal | Potentiometer |
| Linearity | <±2.0% |
| Resolution | Near infinite |
| Repeatability | <±0.02% |
| Recommended Load | 1000 x RT |
| Power Supply Recommended | 10 Vdc |
| Power Supply Max | 36 Vdc |
| Operating Temperature | -40°C to +125°C |
| Working Pressure | 350 bar |
| Burst Pressure (Header) | >600 bar |
| Lifetime | 200 000 meter |
| Header | Stainless steel 304 |
| Sensor Profile | Aluminium EN6063 T6 |
| Sensor Element | Conductive plastic on FR4 |
| Sensor Wire | 44A0131-22-0/2/4 (PVD) |
| Sensor Cable | Li9Y11Y 3x0,25 (PUR) |
