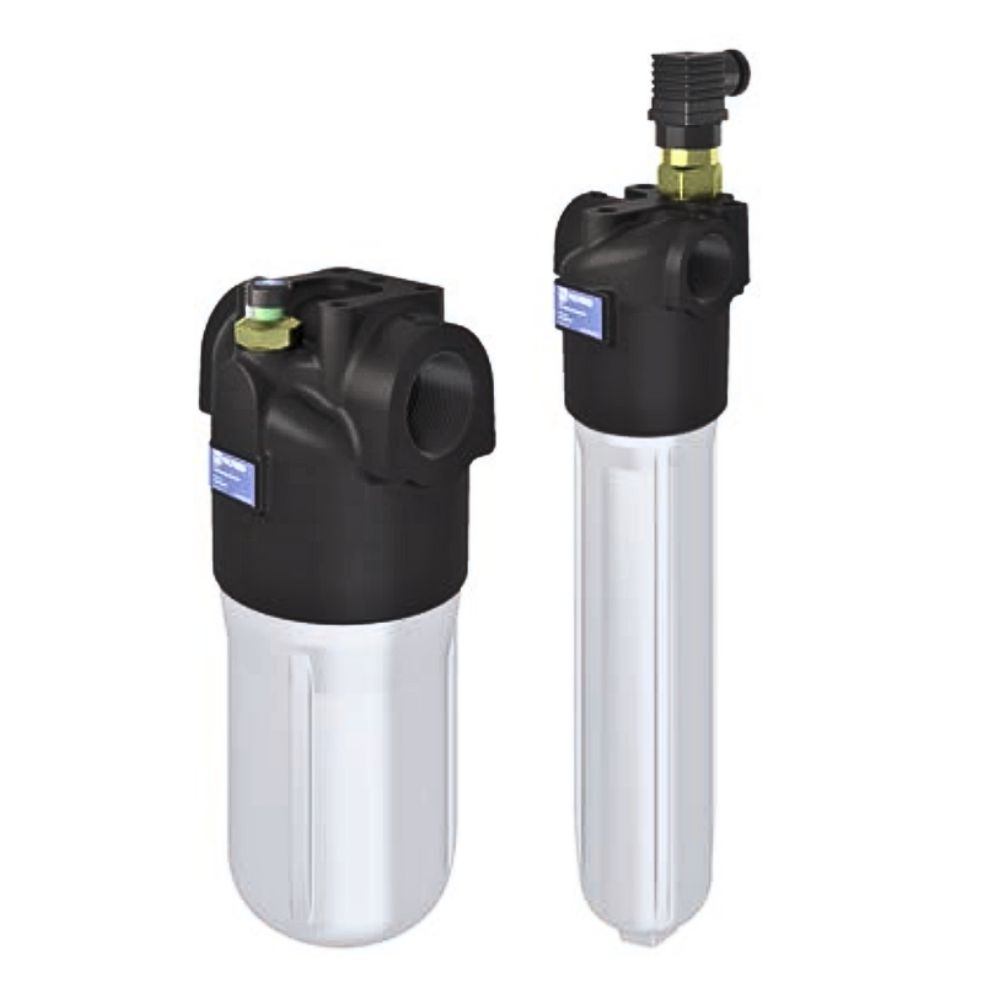

Filtrec Hydraulic F160 In Line High Pressure Filter, 6 Micron, 1/2" BSP, 46 L/min
F160XD040G06ABB3DSV05
Inline filters for operating pressure up to 160 bar, flow rate up to 390 l/min. Available with or without bypass, indicator port is a standard option to fit a visual or electrical differential indicator. Further available options on request, please contact us for a price.
Product Features:

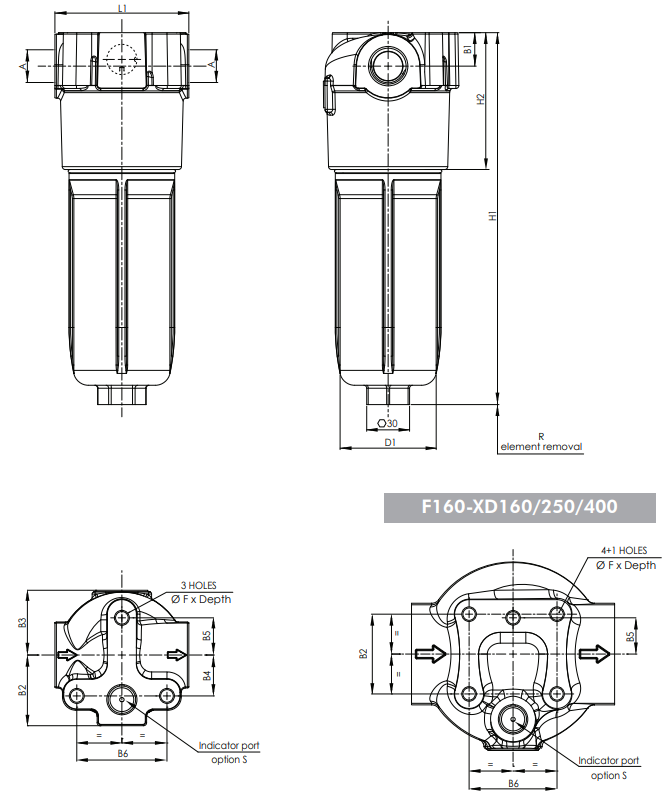

F160 In Line High Pressure Filters
| Model | A | B1 | B2 | B3 | B4 | B5 | B6 | D1 | F | H1 | H2 | L1 | R | WEIGHT |
| F160-XD040 | G 1/2" G 3/4" G 1" | 22.5 | 47.5 | 43.5 | 27.5 | 25 | 60.6 | 65 | M10 X 15 | 180 | 92 | 90 | 110 | 2.4KG |
| F160-XD063 | 250 | 2.6KG | ||||||||||||
| F160-XD100 | 329 | 2.8KG | ||||||||||||
| F160-XD160 | G 1 1/4" G 1 1/2" | 40 | 50 | - | - | 110 | 289 | 129 | 140 | 130 | 6.6KG | |||
| F160-XD250 | 361 | 7KG | ||||||||||||
| F160-XD400 | 514 | 10KG |
HOUSING - tested according to NFPA T3.10.5.1 , ISO3968
PRESSURE: Max operating: 160 barBurst: 480 bar
CONNECTION PORTS: G 1/2”÷1 1/2”
MATERIALS:
Head: cast iron
Bowl: aluminium alloy
Seal: NBR (FKM on request)
BYPASS: No by-pass or 6 bar setting
ELEMENT - type DIN 24550, tested according to ISO 2941, 2942, 2943, 3968, 16889, 23181
FILTER MEDIA: Inorganic microfiber: G03 - G06 - G10 - G15 - G25Paper: C10
DIFFERENTIAL COLLAPSE PRESSURE: 21 bar or 210 bar
OPERATING TEMPERATURE RANGE: -25°C +100°C
FLUID COMPATIBILITY: Full with HH-HL-HM-HV (acc. To ISO 2943).For use with other fluid please contact us.
Further available options on request, please contact us for a price.
